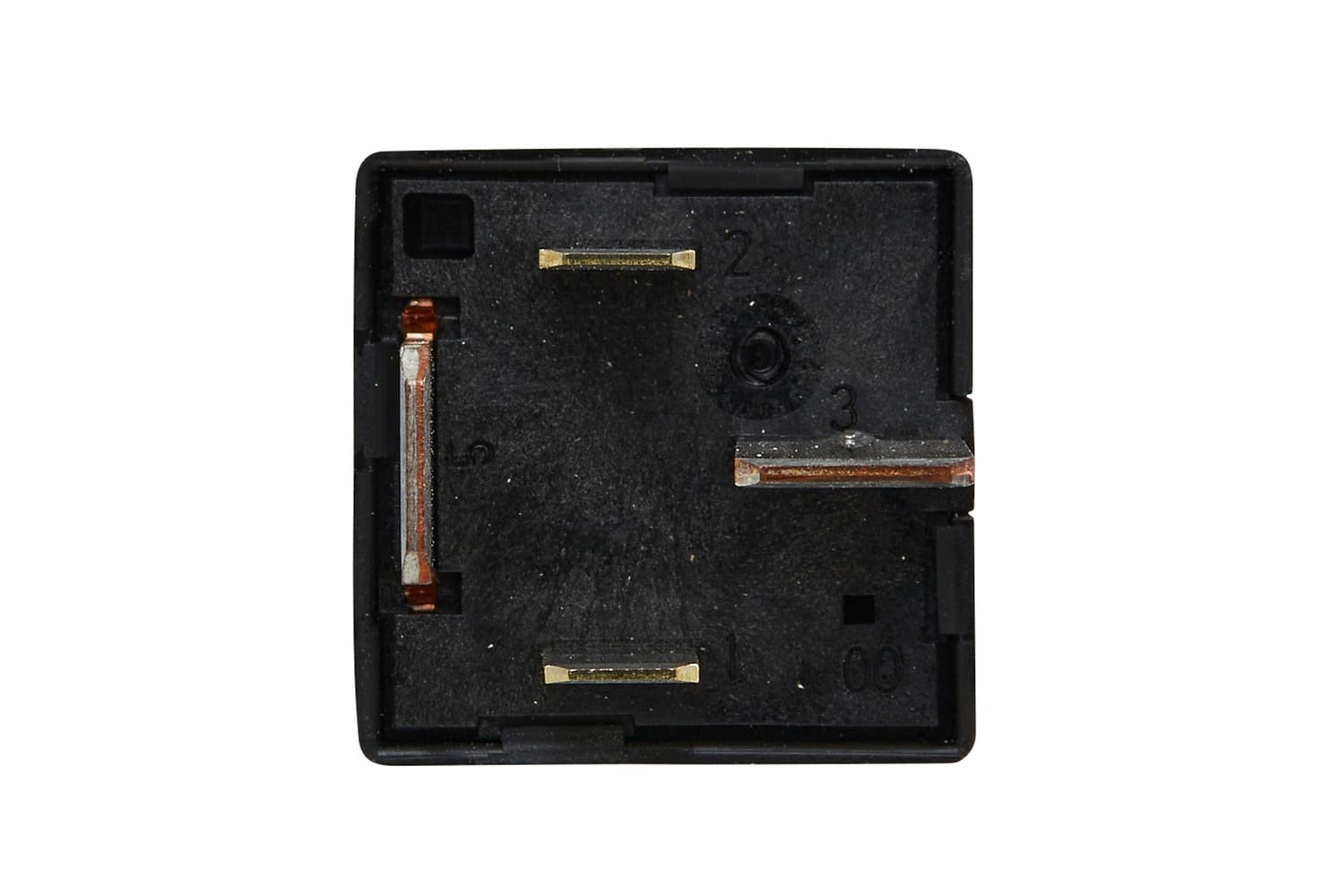

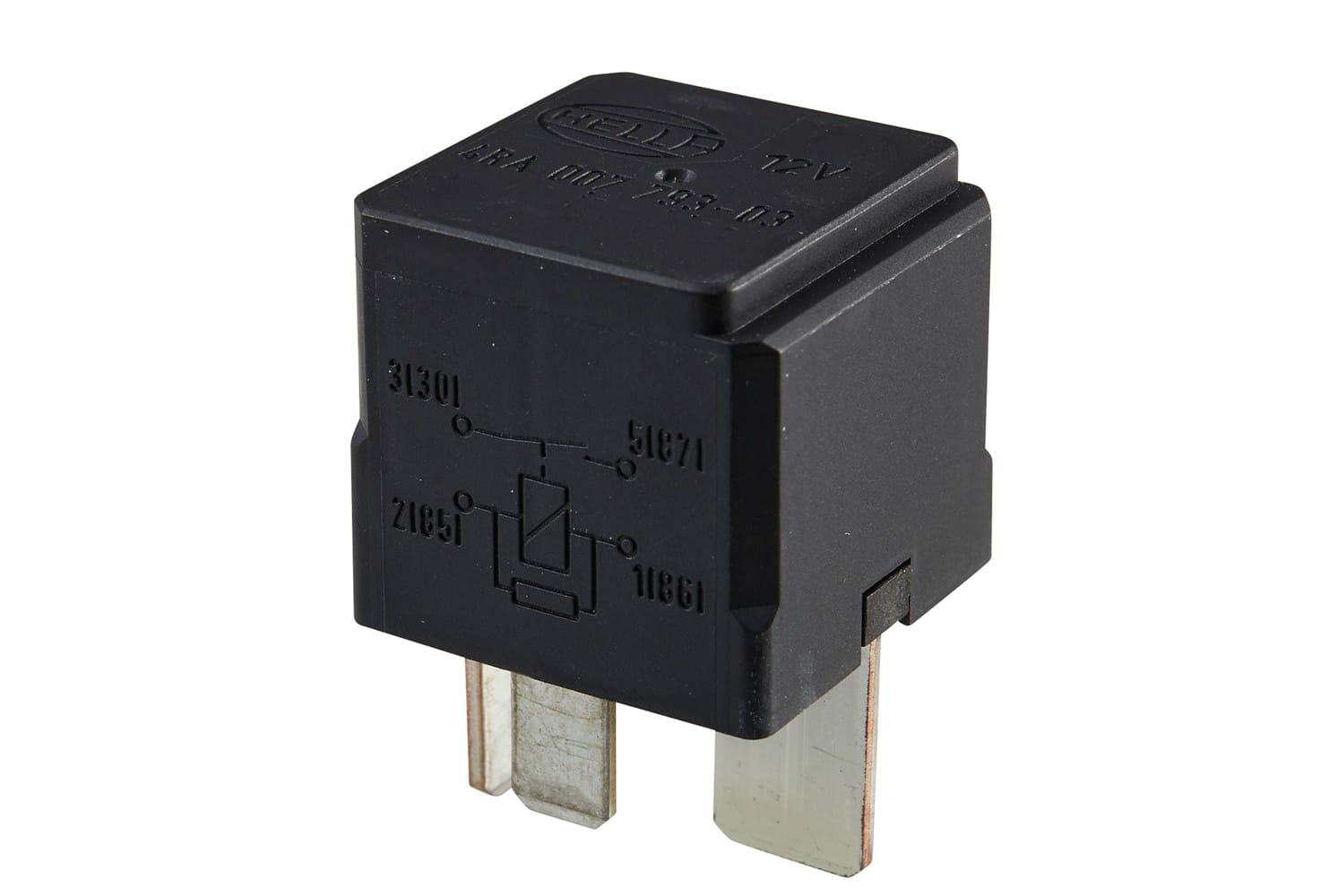

Ρελέ 12V S2 B3 HELLA 4RA007793031

Ρελέ 12V S2 B3 HELLA 4RA007793031

Relay, main current – 12V – 4-pin σύνδεση – Wiring DiagrammeS2 – PlugB3 – High Perγιαmance Contact – ColourΜάυρο – μεout holder Mini relay – normally open relay 12 V, 4-πόλους, με 9.5 mm φορτίο σύνδεσηctions and parallel resistance to the coil, μεout holder – Rated διακόπτηςing currentmin

44 A, max

50 A (at 80 °C ambient temperature) – Number of gear changesmin

75,000 – Temp

Range80°C – Ohmic Load50A – Inductive Load46A – Capacitive Load44A – Capacity at 12V50A – Prot.type (IP Code)IP54

Κωδικός: 4RA 007 793-031

Κατασκευαστής: HELLA

Γνήσιοι Κωδικοί AEBI 44905138; AGCO 4270844M1; AGROMEHANIKA 557074; CASE IH 368459A1; CATERPILLAR 459-6044; FENDT 4270844M1; JCB 716/R5752; JCB 8121/01060; JOHN DEERE AL 20 7376; JUNGHEINRICH 52027388; KENWORTH 007793031; KUBOTA W21TS02126; LINDE 7916291274; MANITOU 746004; MASSEY FERGUSON 4 270 844 M1; MAYBACH 002 542 02 19; MAYBACH 002 542 15 19; MAYBACH 002 542 26 19; MAYBACH 002 542 26 19 28; MAYBACH 002 542 26 19 64; MAYBACH 002 542 87 19; MAYBACH 002 542 88 19; MAYBACH A 002 542 02 19; MAYBACH A 002 542 15 19; MAYBACH A 002 542 26 19; MAYBACH A 002 542 26 19 28; MAYBACH A 002 542 26 19 64; MAYBACH A 002 542 87 19; MAYBACH A 002 542 88 19; MERCEDES-BENZ 002 542 02 19; MERCEDES-BENZ 002 542 15 19; MERCEDES-BENZ 002 542 26 19; MERCEDES-BENZ 002 542 26 19 28; MERCEDES-BENZ 002 542 26 19 64; MERCEDES-BENZ 002 542 87 19; MERCEDES-BENZ 002 542 88 19; MERCEDES-BENZ A 002 542 02 19; MERCEDES-BENZ A 002 542 15 19; MERCEDES-BENZ A 002 542 26 19; MERCEDES-BENZ A 002 542 26 19 28; MERCEDES-BENZ A 002 542 26 19 64; MERCEDES-BENZ A 002 542 87 19; MERCEDES-BENZ A 002 542 88 19; OPEL 1238612; OPEL 5246350; OPEL 90 226 846; OPEL 9522061; REFORM 900540543; SANY 60222130; STEINBOCK 520 27388; STILL 7916291274
